Understanding implicit relations is a critical part of the AP® Calculus AB-BC curriculum. Students often encounter equations involving both x and y in one expression, making it impossible to write them as y = f(x) directly. Therefore, exploring behaviors of implicit relations helps reveal patterns in slope, concavity, and more. This review highlights how implicit differentiation and second derivative implicit differentiation operate and why they are indispensable for tackling a variety of calculus problems.

Implicit differentiation opens the door to finding derivatives, even when there is no explicit function for y. Furthermore, following up with the second derivative provides insights into a curve’s concavity and potential inflection points. These ideas align with essential concepts in AP® Calculus AB-BC, where students must understand how to interpret, analyze, and apply derivatives in numerous contexts.

Basics of Implicit Differentiation

What Is an Implicit Relation?

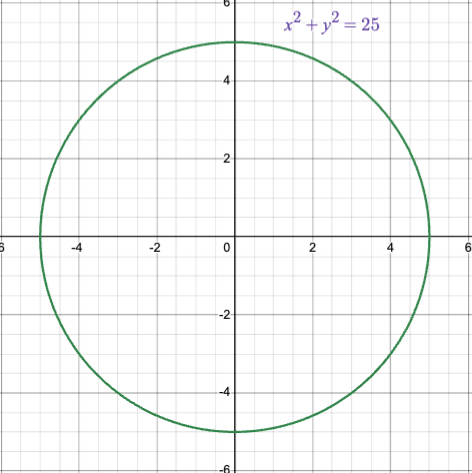

An implicit relation is an equation that couples x and y without explicitly solving for y. For instance, x^2 + y^2 = 25 describes a circle without showing y as the subject. Such relations appear in real-world contexts, including physics and engineering, where multiple variables interact in a single equation.

These implicit equations are important because certain forms cannot be rearranged into the typical y = f(x) format. Yet, it is still necessary to measure rates of change, so a unique approach is needed.

First Steps: Implicit Differentiation

Implicit differentiation is the technique of taking the derivative of each term with respect to x. When terms involve y, the chain rule is crucial. In this process, every time y is differentiated, \frac{dy}{dx} is introduced because y is considered a function of x. This technique provides a valuable tool for dealing with complex equations.

Key steps include:

• Differentiating each side of the equation term by term.
• Applying the chain rule when differentiating terms with y.
• Solving for \frac{dy}{dx} once all derivatives are computed.

Example 1: Finding \frac{dy}{dx} for an Implicit Relation

Suppose the implicit relation is x^2 + xy + y^2 = 7.

1. Differentiate both sides with respect to x:

• The derivative of x^2 is 2x.
• For xy, use the product rule: differentiate x to get 1, multiply by y, then add x times the derivative of y: \frac{d}{dx}(xy) = y + x \frac{dy}{dx}.
• The derivative of y^2 is 2y \frac{dy}{dx}.
• The derivative of 7 is 0.
• Therefore, 2x + \bigl(y + x\frac{dy}{dx}\bigr) + 2y\frac{dy}{dx} = 0.

2. Combine like terms and solve for \frac{dy}{dx}: 2x + y + x\frac{dy}{dx} + 2y\frac{dy}{dx} = 0.

• Group the \frac{dy}{dx} terms: x\frac{dy}{dx} + 2y\frac{dy}{dx} = -2x - y.
• Factor out \frac{dy}{dx}: \frac{dy}{dx}(x + 2y) = -2x - y.
• Thus, \frac{dy}{dx} = \frac{-2x - y}{x + 2y}.

This final expression shows how \frac{dy}{dx} depends on both x and y.

Identifying Critical Points from \frac{dy}{dx}

Definition of Critical Points in Implicit Relations

Critical points occur where the derivative is zero or undefined. For implicit relations, these points are found by setting \frac{dy}{dx} to zero, or by identifying any values that make \frac{dy}{dx} indeterminate. This concept connects to FUN-4.D.1 in the AP® Calculus framework, highlighting the significance of analyzing slope behavior in various problem scenarios.

Example 2: Determining Critical Points

Consider the derivative from Example 1, \frac{dy}{dx} = \frac{-2x - y}{x + 2y}. To find critical points:

1. Set \frac{dy}{dx} = 0: \frac{-2x - y}{x + 2y} = 0. This fraction is zero when the numerator is zero, so -2x - y = 0 \quad\Rightarrow\quad y = -2x.
2. Check for undefined derivative: The expression is undefined if the denominator is zero, so x + 2y = 0 \quad\Rightarrow\quad x = -2y.

Any points satisfying these conditions must also satisfy the original implicit equation x^2 + xy + y^2 = 7. Substituting values from each condition into that original equation locates critical points where the slope is zero or does not exist.

Second Derivative Implicit Differentiation

Why the Second Derivative Matters

The second derivative, denoted as \frac{d^2y}{dx^2}, indicates a curve’s concavity and helps identify potential inflection points. When exploring behaviors of implicit relations, understanding how \frac{d^2y}{dx^2} changes with respect to x and y uncovers important details about the curvature of the relation. This concept, tied to FUN-4.E.2, plays a key role in deeper calculus applications.

Method for Finding \frac{d^2y}{dx^2} in an Implicit Equation

Second derivative implicit differentiation builds upon the first derivative. The main idea is to differentiate \frac{dy}{dx} again with respect to x. However, each time y or \frac{dy}{dx} appears, treat it as a function of x, which means the chain rule applies repeatedly. Carefully managing these extra terms ensures a correct result.

Example 3: Calculating the Second Derivative

Let the original implicit relation remain x^2 + xy + y^2 = 7. From Example 1, \frac{dy}{dx} = \frac{-2x - y}{x + 2y}.

1. Differentiate \frac{dy}{dx} with respect to x:
   • Use the quotient rule: \frac{d}{dx}\Bigl(\frac{u}{v}\Bigr) = \frac{v \frac{du}{dx} - u \frac{dv}{dx}}{v^2}.
   • Let u = -2x - y and v = x + 2y.
   • Then \frac{du}{dx} = -2 - \frac{dy}{dx} and \frac{dv}{dx} = 1 + 2\frac{dy}{dx}.
2. Substitute and simplify:
   • \frac{d^2y}{dx^2} = \frac{(x + 2y)\left(-2 - \frac{dy}{dx}\right) - (-2x - y)\left(1 + 2\frac{dy}{dx}\right)}{(x + 2y)^2}.
3. Replace \frac{dy}{dx} with \frac{-2x - y}{x + 2y} wherever it appears. This step may look complicated, yet it relies on careful algebra. The final result captures how the second derivative depends on both x and y.
4. Interpret the meaning:
   • The sign of \frac{d^2y}{dx^2} indicates whether the curve curves upward or downward. When the second derivative is positive, the curve is concave up, and when it is negative, the curve is concave down.

Quick Reference Chart

Conclusion

Exploring behaviors of implicit relations is vital for uncovering how curves behave in different calculus problems. These steps—implicit differentiation, identifying critical points, and performing second derivative implicit differentiation—are central to the AP® Calculus AB-BC curriculum. They allow deeper insights into the shape and features of curves that cannot be written in the form y = f(x). By applying these principles, students can analyze slopes, concavity, and potential inflection points in a wide range of advanced problems. Such skills form the backbone of further studies in mathematics, physics, and other fields that depend on precise rate-of-change calculations.
